Arduino: How to use KY-038 Sound Sensor Module

Arduino Tutorial: KY-038 Sound Sensor Module

Abstract

Learn how to use the KY-038 Sound Sensor Module with Arduino. This module uses a microphone to detect sound and provides two outputs: a digital ON/OFF signal for noise events and a raw analog value representing sound intensity. This tutorial focuses on configuring both digital and analog input pins to detect sound and measure its approximate level.

1. Introduction

The KY-038 module is designed to detect the presence and approximate loudness of sound. It integrates:

  1. Microphone: Converts sound waves into a tiny electrical voltage.
  2. Amplifier Circuitry: Boosts the microphone’s weak signal.
  3. Comparator Circuitry: Converts the amplified signal into a sharp digital HIGH or LOW signal (D0).
  4. Analog Output (A0): Provides the raw, amplified waveform, which correlates with sound intensity.
  5. Potentiometer: Allows the user to adjust the trigger threshold for the digital output (D0).

In this episode, you’ll learn:

  • The difference between the module’s digital (D0) and analog (A0) outputs.
  • How to use the analog output (A0) to measure instantaneous sound volume.
  • How to use the digital output (D0) for simple clap or noise detection.
  • How to use the module’s onboard potentiometer to set the digital trigger sensitivity.

This project adds basic audio sensing to your Arduino capabilities.

2. Prerequisites

Make sure you have:

  • An Arduino Uno or compatible board.
  • One KY-038 Sound Sensor Module.
  • Jumper Wires.
  • Arduino IDE

3. Wiring and Setup for Arduino

The KY-038 module has four pins and requires both digital and analog input pins.

Step 1 – Identify Pins

The module typically has four pins: A0 (Analog Output), D0 (Digital Output), VCC (+), and GND (− or GND).

Step 2 – Connect the Module

Wire the module to the Arduino as follows:

  • Connect the GND pin of the KY-038 to the GND pin on the Arduino.
  • Connect the VCC pin of the KY-038 to the 5V pin on the Arduino.
  • Connect the D0 pin of the KY-038 to Arduino Digital Pin 7 (Digital Input).
  • Connect the A0 pin of the KY-038 to Arduino Analog Pin A0 (Analog Input).

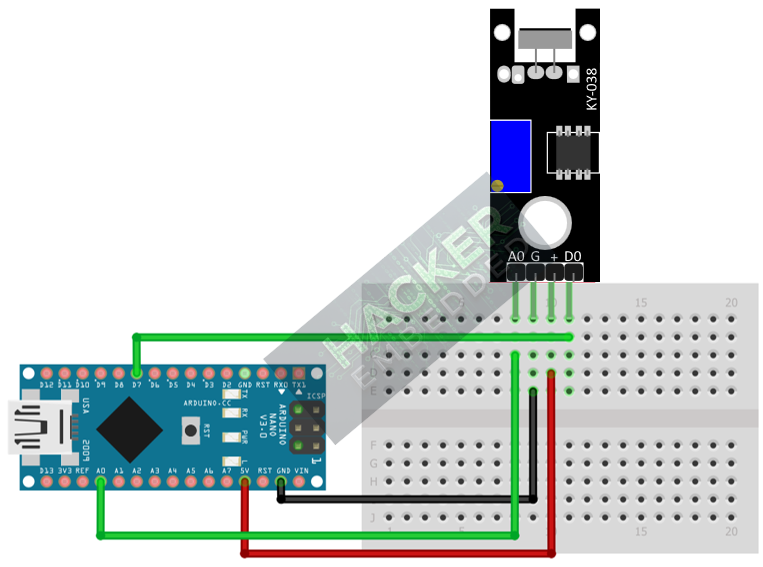

This image was created with Fritzing

Step 3 – Initialize Pin Modes

pinMode(7, INPUT); // D0 pin for digital ON/OFF detection

4. Writing Dual-Mode Sound Sensing Code

We will monitor both the analog output (to get a sense of noise level) and the digital output (to detect a sound event like a clap). We’ll use the onboard LED (Pin 13) to reflect the digital state (D0).

Open main.ino and implement the following code.


					const int DIGITAL_PIN = 7; // D0 Output
const int ANALOG_PIN = A0; // A0 Output
const int LED_PIN = 13;    // Built-in LED

// Variables for filtering the analog reading
int maxVolume = 0; // Tracks the peak volume since the last reading

void setup() {
  pinMode(LED_PIN, OUTPUT);
  pinMode(DIGITAL_PIN, INPUT);
  Serial.begin(9600);
  Serial.println("KY-038 Sound Sensor Ready!");
}

void loop() {
  // 1. Analog Reading (A0) - Read 100 samples to find the peak volume
  // This helps to smooth the fluctuating waveform into a single 'loudness' value.
  maxVolume = 0;
  for(int i = 0; i < 100; i++) {
    int raw = analogRead(ANALOG_PIN);
    if (raw > maxVolume) {
      maxVolume = raw;
    }
  }

  // 2. Read Digital State (D0) - Active LOW typically means noise detected
  int digitalState = digitalRead(DIGITAL_PIN);

  // Control LED based on Digital Output
  if (digitalState == LOW) {
    digitalWrite(LED_PIN, HIGH); // Turn LED ON (Sound Detected)
  } else {
    digitalWrite(LED_PIN, LOW);  // Turn LED OFF (Quiet)
  }

  // Print both outputs to the Serial Monitor
  Serial.print("Analog (Peak Volume): ");
  Serial.print(maxVolume);
  Serial.print(" | Digital (Switch): ");

  if (digitalState == LOW) {
    Serial.println("DETECTED (LOW)");
  } else {
    Serial.println("CLEAR (HIGH)");
  }

  delay(100);
}




Code Explanation

  • Analog Filtering: Sound is a wave that changes rapidly. Simply reading analogRead() once gives a random point on the wave. The for loop reads 100 times quickly and finds the peak voltage (maxVolume), which correlates better to the perceived loudness.
  • D0 Output: The digital output switches to LOW when the sound volume exceeds the fixed threshold set by the potentiometer.

5. Adjusting Sensitivity (Potentiometer)

The potentiometer on the KY-038 controls the sensitivity of the Digital Threshold for the D0 pin:

  1. Open the Serial Monitor and observe the Analog (Peak Volume) when the room is quiet. This is your baseline noise.
  2. Make a medium-loud noise (e.g., a clap) a few feet away. Note the peak volume.
  3. Adjust the Potentiometer with a small screwdriver. You are setting the sensitivity:
  • Turn clockwise: Decreases sensitivity, requiring a much louder sound to trigger the D0 output to LOW.
  • Turn counter-clockwise: Increases sensitivity, making even quiet ambient noise trigger the D0 output.
  1. Find the sweet spot where only your intended sound (e.g., a clap) triggers the Digital (Switch) output.

6. Uploading and Running the Project

Step 1 – Build & Upload

Complete the standard build and upload process.

Step 2 – Test

  1. Calibrate the digital threshold using the potentiometer (Section 5).
  2. Quiet Room: The Arduino LED (Pin 13) should be OFF, and the Digital state should be CLEAR (HIGH).
  3. Make Noise: When you make a noise that exceeds the calibrated threshold, the LED should turn ON, and the Digital state should read DETECTED (LOW).
  4. Observe the Analog (Peak Volume) to see how the raw loudness changes with your voice or claps.

7. Hands-On Lab Recap

You’ve learned:

  • The operational difference between the Analog (A0) and Digital (D0) sound sensor outputs.
  • A basic technique for filtering the analog sound signal to get a meaningful loudness value.
  • The crucial skill of calibrating the digital threshold with the onboard potentiometer.

This concludes the comprehensive series on fundamental KY-series modules, providing you with a complete toolkit for basic electronic projects.

8. Common Issues & Fixes

Issue Cause Solution
Digital LED is always ON or never turns ON. Potentiometer is mis-calibrated. Calibrate the sensor carefully (Section 5). It must be set to separate the ambient noise baseline from the target sound's amplitude.
Analog reading is fixed near 512 and amplitude is near 0. The simple microphone output is fixed near VCC/2. This is normal; the maxVolume calculation is correctly tracking the tiny fluctuation around 512. Focus on the maxVolume variable, which should increase with loud noise.
Digital works, but Analog does not respond to the sound. Faulty microphone or amplifier circuit. Check that the VCC and GND are secure. If maxVolume never changes, the sensor may be defective.
